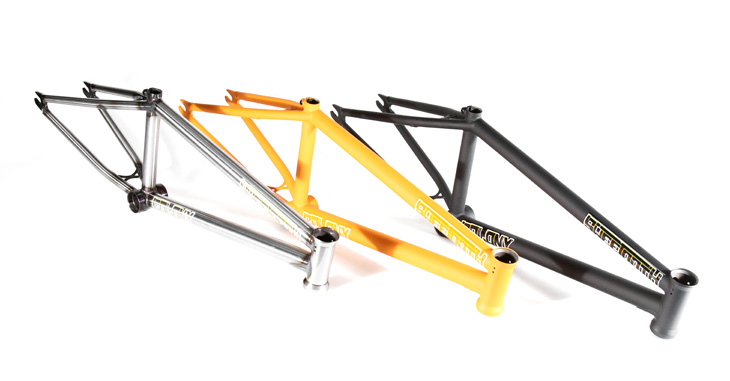

Since we dropped Alex‘s web video a couple days ago it seemed like a good time to give you the run down on his signature frame.
Full CrMo frame.
Heat treated Integrated Headtube, MID BB and 5mm CNC machined dropouts.
Tapered down tube, top tube & rear stays.
Offset internal gusset on tapered TT tubing.
External gusset on tapered DT tubing.
Built-in seat clamp with replacable nut & bolt.
Removable brake mounts & hardware.
Unique & exclusive invest cast removable Colony brake tabs.
Sizes: 19.8”, 20.3” & 20.6″ TT.
13.5” rear, 75.2º HA, 71º ST.
11.5″ BB Height.
Stand over height 8.5″ (centre of BB shell to centre of TT)
Tubing Diameters: TT 31.8mm, DT tapered from 36.0mm-32.0mm, SS & CS 19.0mm taper to 16.0mm.
Weight: 20.3″ version 5.17 lbs (2,347 grams).
Improvements for 2013.
Now in 20.6″ size.
External downtube gusset.
Taller stand over height of 8.5″.
Smaller drop outs.
